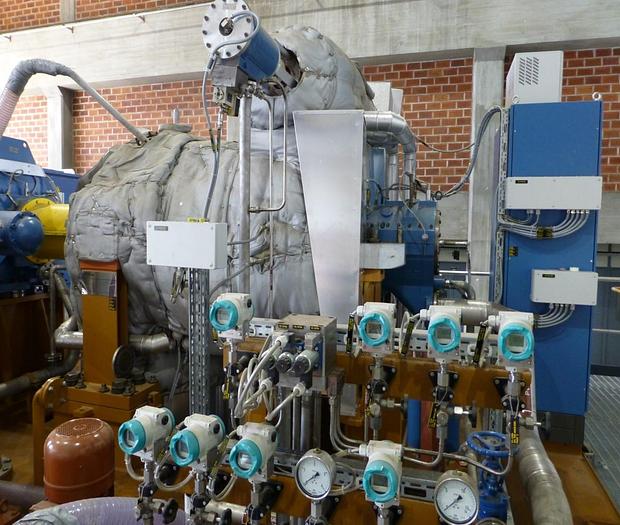

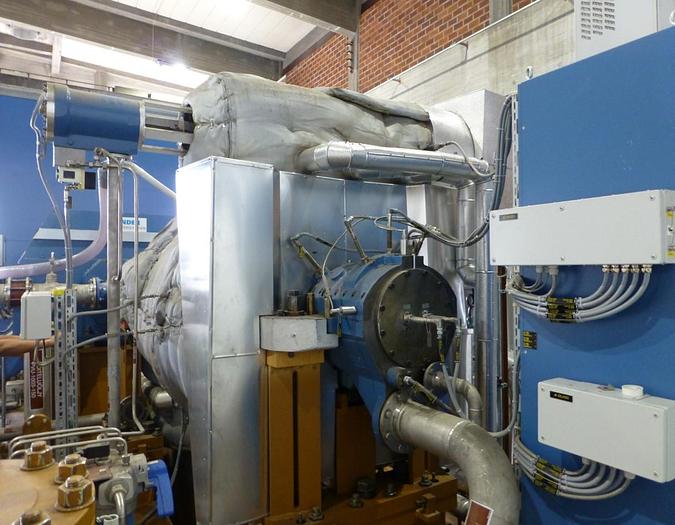

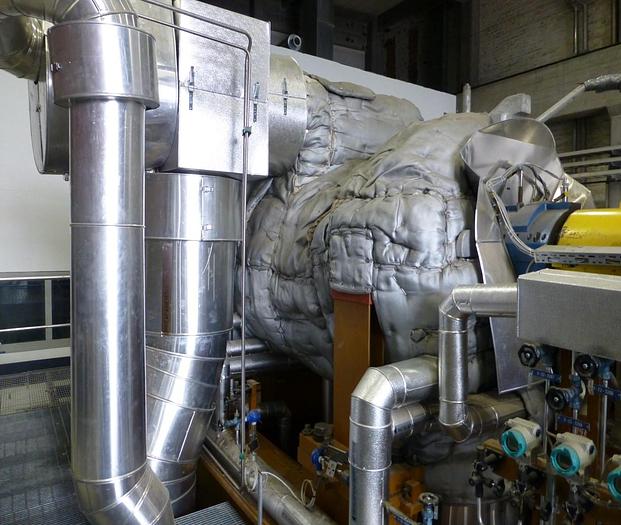

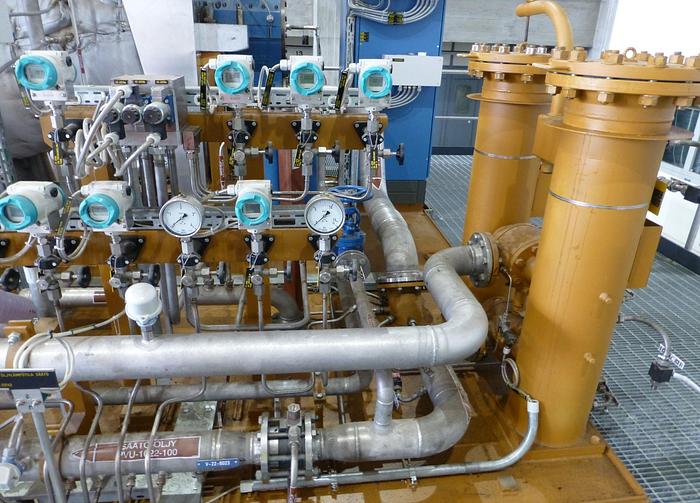

1 x 22MW Siemens Back Pressure Steam Turbine-Generator Package (USED) 50Hz

1 x 22MW Siemens Back Pressure Steam Turbine-Generator Package

Condition: Used

Year of Manufacture: 2008

Hours of Operation: 24,000

Make: Siemens

Model: SST 300

Type: Back Pressure

Rated Output: 22.5MW

Inlet Mass Flow (MAX): 120.6t/hr

Inlet Steam Temperature: 525 Deg C

Inlet Steam Pressure: 90 Bar

Exhaust Pressure: 3.4 Bar

Speed: 8,274 RPM

Gear

Manufacturer: Flender

Input Speed: 8,274 RPM

Output Speed: 1,500 RPM

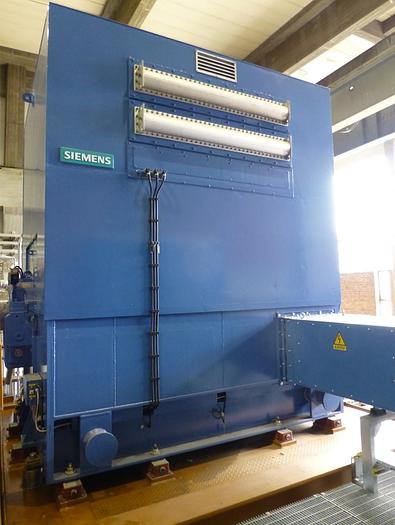

Alternator

Manufacturer: Siemens

Rated Output: 28,500 KVA

Power Factor: 0.8

Voltage: 6.3kV

Frequency: 50Hz

Speed: 1,500 RPM

UEN 2114
